TractionElite H2 MRL is everything you love from Hydroware, now for traction lifts. Already, with hundreds of projects world-wide. With Hydroware you get fast and reliable delivery, market leading support, and outstanding installation and commissioning time.
To request a quotation for TractionElite, please use one of our two tools:

WebCalc

Quotation and order form
Choose your preferred quotation method:
- WebCalc – our digital quotation and order tool, where you receive a price immediately based on your selections.
- Quotation and order form – fill it out and send it to us at sales@hydroware.se, and we will get back to you with a complete quotation.
The different MRL versions
What solution suits your project?
MLR-E | Existing
Controller installed in the Existing cabinet
- Reuse the existing cabinet

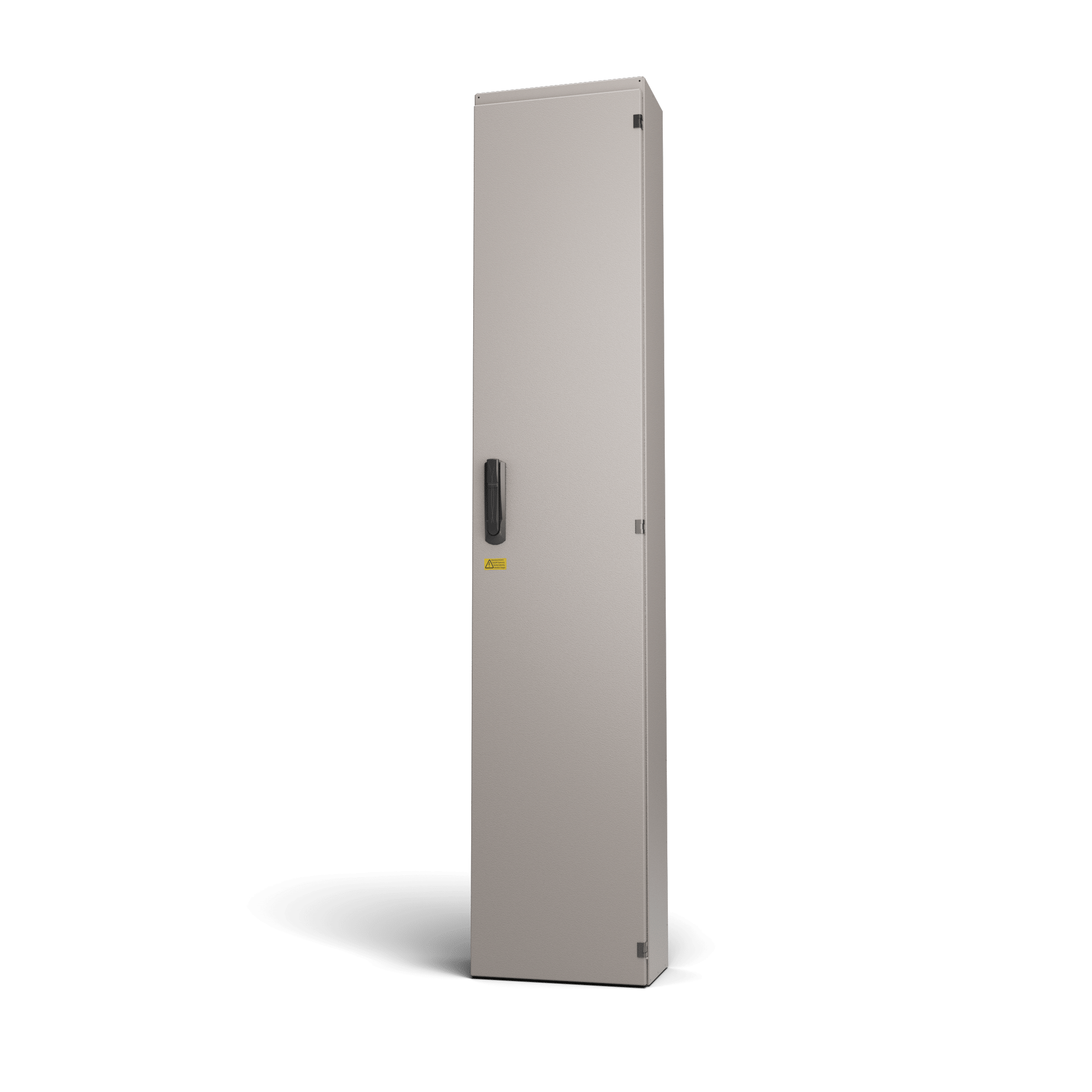

MRL-F | Floor
Controller in new cabinet on any Floor
- Comes with new cabinet
MRL-S | Shaft
Controller inside Shaft, MAP outside of shaft
- MAP-cabinet includes the HMI, with evacuation procedures and emergency stop
- Can be installed vertically or horisontally
H2 – What sets it apart
Modernise traction lifts with minimal aesthetic impact

With TractionElite H2 MRL-S decentralised user interface, the aesthetic impact will be held to a minimum after a modernisation. The decentralised MAP, housing the 10-inch touch display and user interface, is placed on a wall outside of the shaft and measures approximately 310×555 mm. The main controller, and the frequency inverter, is placed inside the shaft.
PSU H2 DILIGENS

A safe absolute positioning system with UCM and overspeed tripping functions. Activates electrical safety gears and replaces all safety-relevant limit switches and floor sensors.
- SIL3 compliant and certified according to EN81-20/50 PESSRAL
- Certified for low top and low pit
- Replaces mechanical props for low pit/top in combination with electrical safety gears
10” touch display and accessibility

The control unit is fitted with a 10-inch high resolution touch display. Among other features, the user will be able to find documentation, schematics, historical data and error logs directly in the display. Furthermore, there are instruction movies and language options available. The lift controller is accessible from any smart device and enables the user to connect to the controller from anywhere in the lift shaft.
Surveillance, access and updates with cloud connection

All units come with HydroCloud readiness. Thanks to the HydroCloud connection, the unit can be accessed from anywhere. The unit can be updated remotely, and documentation will always be up to date. The system is open and can be adapted to work with other monitoring systems on the market.
Pit and car node – improved

Our new innovative pit node is installed in the shaft pit (place anywhere below floor node 1) cuts down the number of wires that run between shaft and machine room. A new version of the pit node is available for machine rooms on-top, with a connectable cable, allowing for a smoother and faster installation. The improved car node allows for a neater and more professional looking installation.
TractionElite H2 MRL
The ideal solution for your MRL modernisation
Monospace MOD kit
Choose the best suited TractionElite H2 version for your modernisation project.

With MX/NMX machine |
---|
Previous controller |
On floor > 397x1950mm |
TractionElite version |
MRL-E / MRL-F |
Brake release |
Space for existing brake release handle |
Inverter |
Fuji inverter New encoder No magnets needed |
Option |
AutoEvac (no need for manual brake release) |
With NEW gearless machine |
---|
Previous controller |
On floor > 397x1950mm |
TractionElite version |
MRL-E / MRL-F |
Brake release |
UPS for brake release |
Inverter |
ZAdyn 4C inverter |
Option |
AutoEvac (no need for manual brake release) New machine/ropes |

With MX/NMX machine |
---|
Previous controller |
Slam post controller or MAP |
TractionElite version |
MRL-S |
Brake release |
Brake release in existing cabinet |
Inverter |
Fuji inverter New encoder No magnets needed |
Option |
AutoEvac (no need for manual brake release) |
With NEW gearless machine |
---|
Previous controller |
Slam post controller or MAP |
TractionElite version |
MRL-S |
Brake release |
UPS for brake release |
Inverter |
ZAdyn 4C inverter |
Option |
AutoEvac (no need for manual brake release) New machine/ropes |
Gen2 MOD kit
Choose the best suited TractionElite H2 version for your modernisation project.

With OLD belt machine |
---|
Previous controller |
Slam post controller |
TractionElite version |
MRL-F |
Brake release |
UPS for brake release |
Inverter |
ZAdyn 4C inverter New encoder |
Belt supervision |
Existing belt supervision |
Option |
Load sensors |
With NEW belt machine |
---|
Previous controller |
Slam post controller |
TractionElite version |
MRL-F |
Brake release |
UPS for brake release |
Inverter |
ZAdyn 4C inverter |
Belt supervision |
Directional change counter |
Option |
Load sensors New machine/belts |

With OLD belt machine |
---|
Previous controller |
Slam post controller |
TractionElite version |
MRL-S |
Brake release |
UPS for brake release |
Inverter |
ZAdyn 4C inverter New encoder |
Belt supervision |
Existing belt supervision |
Option |
Load sensors |
With NEW belt machine |
---|
Previous controller |
Slam post controller |
TractionElite version |
MRL-S |
Brake release |
UPS for brake release |
Inverter |
ZAdyn 4C inverter |
Belt supervision |
Directional change counter |
Option |
Load sensors New machine/belts |
S3300 MOD kit
Choose the best suited TractionElite H2 version for your modernisation project.

With OLD belt machine |
---|
Previous controller |
Slam post controller |
TractionElite version |
MRL-F |
Brake release |
UPS for electrical brake release pulse |
Inverter |
ZAdyn 4C inverter Existing encoder |
Belt supervision |
Directional change counter |
Option |
Load sensors New encoder |

With OLD belt machine |
---|
Previous controller |
Slam post controller |
TractionElite version |
MRL-S |
Brake release |
UPS for electrical brake release pulse |
Inverter |
ZAdyn 4C inverter Existing encoder |
Belt supervision |
Directional change counter |
Option |
Load sensors New encoder |
Quick facts about TractionElite H2 MRL
Simple installation
- CANopen Lift technology
- No floor zone sensors needed
- No limit switches needed
- Innovative pit box
- Automated test procedure
- Simple commissioning
- SIL3 certified Position Supervisor Unit
- Decentralized user interface – MRL
10 ” touch display
- Easy to navigate
- Language options
- Instruction movies in display
- Training sessions simplified
- Integrated diagnostic tool
- Real time and historical data
- Safety circuit overview
- Full accountability
Stay connected – HydroCloud
- HydroCloud connection
- Always updated documentation
- Remote software updates
- Remote monitoring
- Access from anywhere
- Live internal drawings
- Better planning of maintenance
- Constantly evolving IoT
- Local Wi-Fi enables access from smart devices
Models of TractionElite and HydroElite drive and control systems
TractionElite is available in MR and MRL configurations.
HydroElite is available as H2 and V5 – VENI, VIDI, MINI and MRL.
